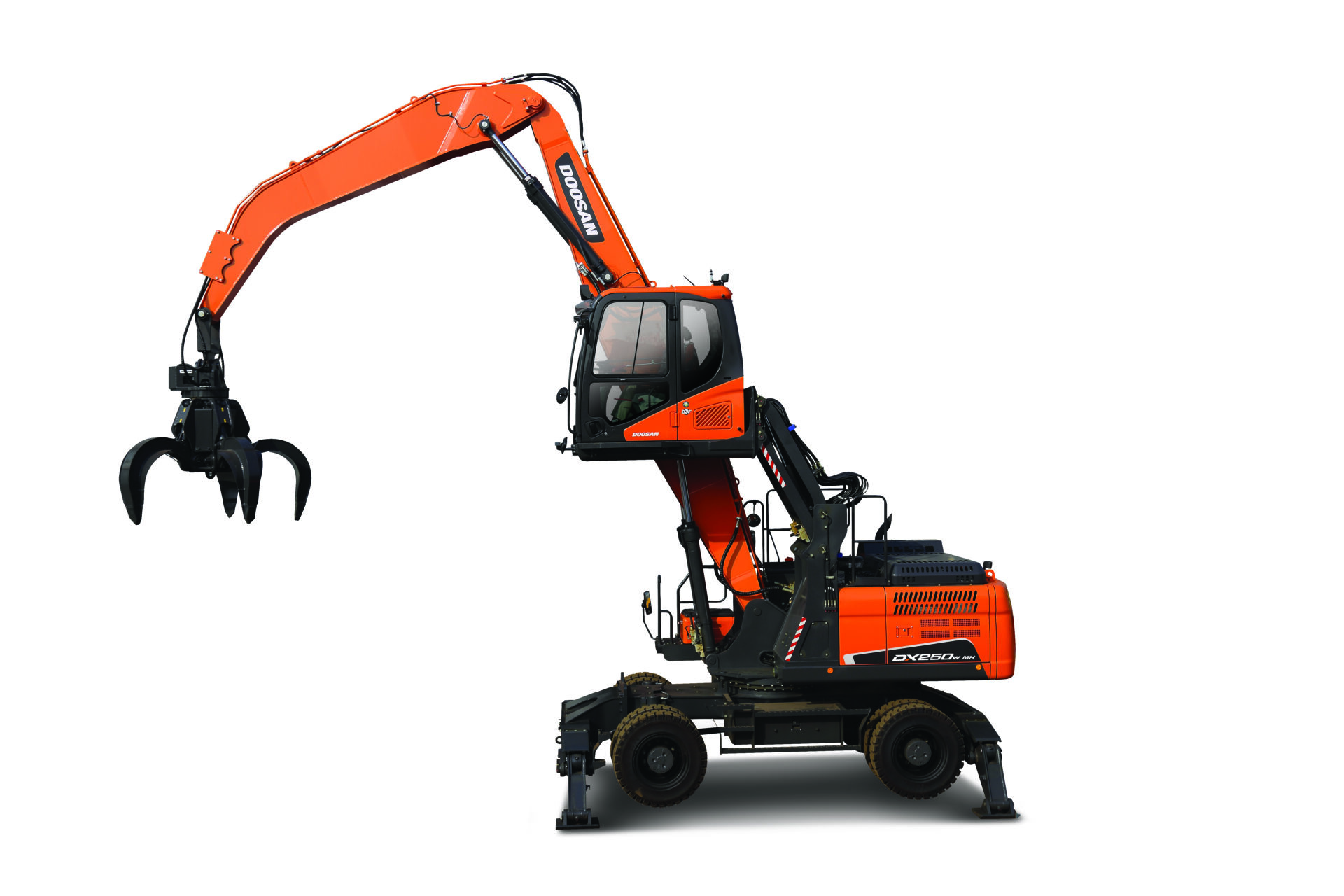

Based on Doosanâs DX210W-5 21 tonne wheeled excavator, the DX250WMH-5 material handler has been designed specifically for a wide range of material sorting and handling applications such as those in the scrap metal and other solid waste and recycling industries, as well as logging.
Designed to carry out the toughest tasks, the DX250WMH-5 is built with front and rear stabilizers, and a boom and arm specifically designed for material handling tasks. A standard feature is the hydraulic cab riser, which gives the operator better all-around visibility of the attachment and work area. When combined with the rear view camera display in the cab, the operator has excellent visibility of the job site.
The DX250WMH-5 material handler is easy to operate with ergonomic joysticks and a steering wheel. The machine comes equipped with two-way auxiliary and rotate circuit hydraulics to improve efficiency. The operator can use buttons on the joysticks or an optional foot pedal to control auxiliary attachments.
The new DX250WMH-5 material handler is powered by the 6-cylinder, turbocharged Doosan DL06PA water-cooled diesel engine, providing an output (SAE J1995) of 129.4 kW (173.5 HP). The DL06PA engine offers convenience and lower costs by meeting Stage IV emission regulations without the need for a diesel particulate filter (DPF), through the use of cooled exhaust gas recirculation (EGR) and selective catalyst reduction (SCR) after-treatment technologies.
A special Doosan-developed system, Smart Power Control (SPC), improves machine efficiency while maintaining productivity through variable speed control and pump torque control, automatically adjusting RPMs according to the load being handled.
The SPC can be used with all four work modes available on the Doosan DX250WMH-5 material handler. These power modes help the operator to manage the balance of fuel consumption and machine power to the working conditions.
In addition to the four power modes, the DX250WMH-5 includes a lifting work mode, which provides increased pump torque, low engine RPM and an automatic power boost.
An optional generator is available as a turnkey solution without requiring additional modification. For added durability, an optional V-guard protects the machine sides and components behind the doors.
In the cab, a standard 7-inch colour LCD display provides helpful maintenance history and machine monitoring information. It also displays a video feed from the standard rear-view camera and/or an optional side view camera, which are uniquely placed to give even better visibility. A split screen mode displays the rear view camera and vital machine information at the same time. The feed from the optional side view camera can be reviewed independently or in a split screen mode.
